Can I use it whitout accessories? How many accessories can I use with?
Yes, it can work without any accessories, depending on the test you wish to perform on the site. The only test that it is not available without accessories would be the primary/secondary analysis (Ratio Test).
The accessories available are 3 phases Rogowski coils rated at 2500A max (ST-3/FLEX-CT2500), Voltage Transducer rated at 600 Volts max (ST-3/PT600), and two interface adapters to use with the SensorLink® Amp LiteWire (ST-3/ALW) and Volt LiteWire (ST-3/VLW) for overhead (pole mounted) installations.
The accessories are 15 ft long. Cable extensions are available for purchase. The extension cable is used when the primary CT or PT is far from the meter installation.
They are compatible with ST-3/FLEX-CT2500 and ST-3/PT600 accessory.
When using one of these extensions on primary current or primary voltage accessory previously described, the performance of the accessory will be derated.
The table below shows which installed accessory is needed or not for the supported tests.
Power Quality | CT Ratio/Phase | PT Ratio/Phase | CT Secondary Burden | Admittance | |
CT Accessory | Not necessary | Mandatory | Not necessary | Optional | Not necessary |
PT Accessory | Not necessary | Not necessary | Mandatory | Not necessary | Not necessary |
Useful links:
Related Articles
How does the ST-3/XT3 works?

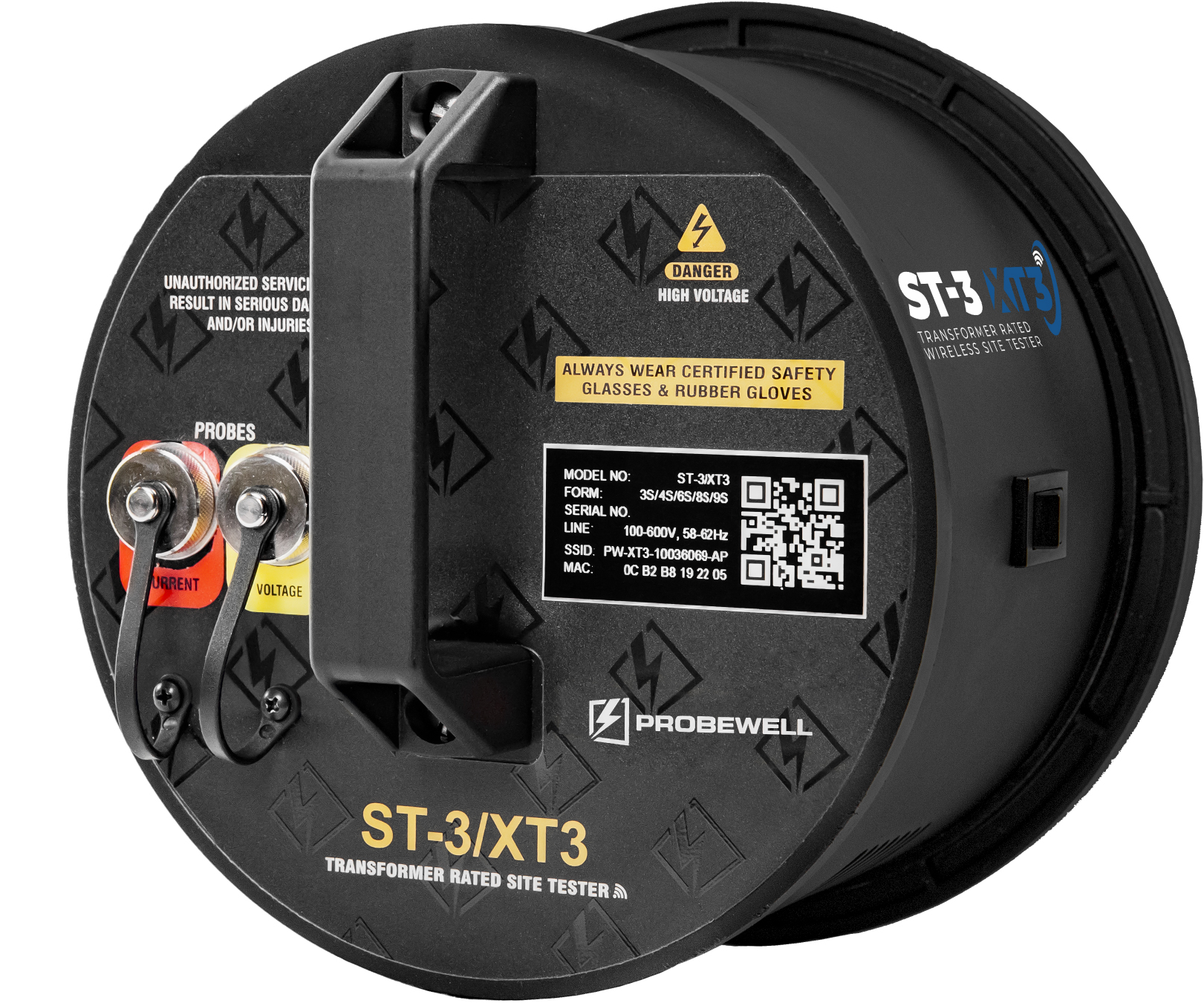

ST-3/XT3 : Transformer Rated Wireless Site Tester This unit is a socket type tester, that obtains the reading directly from the secondary of the current and potential transformers. It does not require any external load to perform tests and it is ...What is the procedure when installing the tester?
